The Significance of Choosing Between PM Motors and Induction Motors
Selecting the right motor for specific applications can greatly influence operational efficiency and overall performance. The choice between Permanent Magnet (PM) motors and induction motors is particularly significant due to their unique characteristics and efficiency profiles. Grasping these differences can result in improved energy management, lower operational costs, and enhanced performance across various industries. It’s crucial to thoroughly explore the applications and impacts of these motor types to make an informed decision.
Applications Requiring High Efficiency and Performance
In applications where high efficiency and performance are paramount, the choice of motor can have far-reaching implications. PM motors, for instance, excel in environments demanding high precision and energy efficiency. These are typically found in electric vehicles, aerospace applications, and sophisticated industrial automation systems. On the other hand, induction motors, although less efficient, have been traditionally preferred for heavy-duty applications like conveyor belts, pumps, and industrial machinery due to their robustness and cost-effectiveness. Choosing the right motor type ensures that operations run smoothly and that energy consumption is kept within optimal limits.
Impact of Accelerating Electrification Across Industries
The accelerating push towards electrification across numerous industries underscores the importance of motor efficiency. As sectors ranging from automotive to manufacturing and renewable energy continue to shift towards electric-driven systems, the preference is gradually leaning towards more efficient PM motors. These motors contribute to lower greenhouse gas emissions and reduced energy costs, aligning with global sustainability goals. Meanwhile, induction motors, although still widely used, are experiencing a decrease in preference owing to their comparatively lower efficiency ratings. The trend towards a more electrified industrial landscape has thus heightened the need for motors that offer superior performance and energy efficiency.

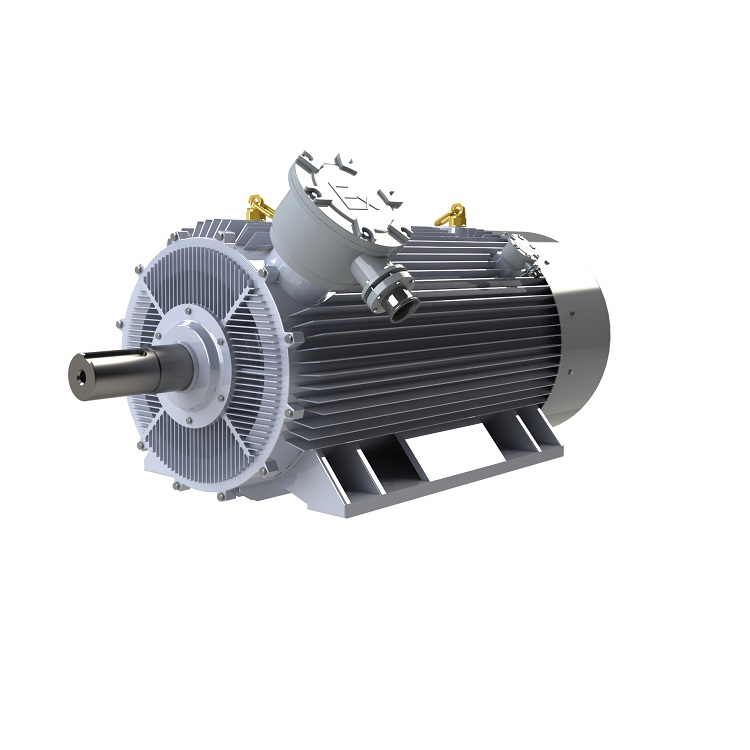

Key Differences Between PM and Induction Motors
Historical Availability and Cost-Effectiveness of Induction Motors
Historically, induction motors have enjoyed widespread availability and have been the workhorse of the industry due to their simplicity and cost-effectiveness. Manufacturing processes have long optimized the production of induction motors, making them more affordable and accessible. Their rugged construction and reliable performance in various harsh environments have cemented their place in industrial applications. However, the advancements in motor technology bring PM motors into competitive play, highlighting the need for a comparative look at operational efficiency and cost benefits.
Advances in PM Materials Enhancing Viability
The advancement of high-performance magnetic materials has notably boosted the feasibility of PM motors. Breakthroughs in rare-earth magnets, including neodymium and samarium-cobalt, have rendered PM motors more efficient and dependable. These materials offer superior magnetic flux, enhancing overall performance while decreasing the size and weight of the motors. As a result, PM motors are becoming more practical and cost-effective, even in applications where their initial costs were once a significant barrier. This material science progress has been crucial in raising the prominence of PM motors in the market.
Efficiency and Torque Density Advantages of PM Motors
Inherent Synchronous Operation
One of the primary advantages of PM motors is their inherent synchronous operation. Unlike induction motors, PM motors do not suffer from lag between the rotor and stator because they use permanent magnets to create a constant magnetic field. This design eliminates the need for electrical current to flow through the rotor, thereby reducing energy losses and enhancing efficiency. With efficiency ratings that can reach up to 97.5%, PM motors demonstrate superior performance, particularly in applications requiring precise speed control and high dynamic response.
Elimination of Lag Between Rotor and Stator
The absence of lag in PM motors means that there is a direct and constant magnetic coupling between the rotor and stator, leading to better efficiency and performance. This synchronous operation ensures that the motor runs at the exact frequency of the power supply, minimizing energy wastage and improving overall system efficiency. This characteristic is particularly beneficial in applications where precise control and efficiency are critical, such as in robotics and high-performance electric vehicles.
Achieving Efficiency Ratings Up to 97.5%
PM motors can achieve efficiency ratings as high as 97.5%, surpassing the typical efficiency of induction motors. This high efficiency is largely attributed to the elimination of rotor losses and the optimized design of the magnetic circuit. Such impressive efficiency ratings translate into significant energy savings and lower operating costs over the life cycle of the motor, making PM motors an attractive option for various high-efficiency applications.
Limitations of Induction Motors
Efficiency Capped at 90-93% Due to Slippage
Induction motors typically exhibit lower efficiency compared to PM motors, with their efficiency generally peaking between 90-93% due to inherent slippage and rotor losses. The requirement for electrical current to generate magnetic fields within the rotor leads to additional energy losses, thereby diminishing the motor’s overall efficiency. Despite being reliable and cost-effective, induction motors’ reduced efficiency can lead to higher energy consumption and increased operational costs over time.
Comparison of Torque Density
Another critical aspect to consider is the torque density of the motors. PM motors exhibit higher torque density compared to induction motors, meaning they produce more torque per unit of weight. For example, a 50 kW PM motor might weigh significantly less than a 75 HP induction motor while providing comparable or superior performance. This higher torque density allows for more compact and lightweight motor designs, which is particularly advantageous in applications where space and weight are critical constraints, such as in electric vehicles and aerospace applications.
Weight Comparison of 50 kW PM Motor and 75 HP Induction Motor
To illustrate, a 50 kW PM motor often weighs much less compared to a 75 HP induction motor, despite offering similar performance. This difference in weight can be crucial in applications where the motor needs to be integrated into systems with strict weight limitations. The reduced weight translates into further energy efficiency gains as it enables more streamlined and lighter designs in the overall system, contributing to better performance and lower operational costs. This comparison further underscores the efficiency and practical benefits of choosing PM motors over induction motors in suitable applications.
Speed Control and Frequency Considerations
Synchronous Operation of PM Motors
PM Motors operate synchronously, meaning the rotor rotates at the same rate as the magnetic field. This synchronous operation is crucial for applications requiring precise variable speed control. The lack of slippage in PM Motors ensures that the speed remains consistent with the supplied frequency, which is highly beneficial in processes where exact speed regulation is paramount, such as in robotics and advanced manufacturing systems. This precision allows for better control over production processes, reducing errors and improving quality.
Precise Variable Speed Control
One of the remarkable features of PM Motors is their exceptional ability to offer precise variable speed control. This capability is especially critical in applications that require high responsiveness and accurate speed adjustments, such as CNC machines, robotics, and other automation systems. The effortless synchronization between the rotor and the magnetic field ensures that speed transitions happen smoothly and without notable delay. As a result, PM Motors enhance operational efficiency and output quality by consistently maintaining optimal speed even under varying load conditions.
Speed Limitations of Induction Motors
Inability to Reach Synchronous Speed Due to Slippage
Induction motors, contrastingly, struggle to reach synchronous speed because of inherent slippage – a phenomenon where the rotor speed lags behind the magnetic field speed. This slippage is necessary for torque production but results in reduced overall speed and efficiency. Induction motors thus continually operate at a speed slightly less than the synchronous speed, impacting applications that require precise speed control. This limitation can result in performance inconsistencies, particularly in precision-driven manufacturing processes.
Speed Loss at 60 Hz and Its Impact on Speed Control Flexibility
Induction motors often face speed loss when operating at standard frequencies like 60 Hz, reducing their speed control flexibility. The loss due to slippage can vary with load conditions, causing fluctuations that may not be acceptable in sensitive applications. Unlike PM Motors, induction motors cannot provide the same level of accuracy in speed control, which remains a significant drawback for industries requiring high precision and operational stability. This inherent attribute of induction motors can thus lead to increased energy consumption and reduced efficiency in consistent speed applications.
Cost Considerations for Motor Selection
Expense of PM Motor Magnets
The cost structure associated with PM Motors is largely influenced by the expense of the magnets used. Neodymium magnets, often employed in PM Motors, are particularly costly due to their rare earth elements. This cost factor can make PM Motors seem less attractive initially compared to induction motors. However, advancements are being made to offset these expenses.
Cost of Neodymium Magnets
Neodymium magnets, renowned for their powerful magnetic characteristics, play a crucial role in PM Motors. The elevated cost of neodymium stems from its scarce availability and intricate extraction methods. This high expense can greatly affect the total cost of PM Motors, resulting in a higher initial price. However, the efficiency and performance advantages typically validate the investment over the motor’s lifespan.
Potential for Cost Offset Using Powdered Metal
Recent developments in utilizing powdered metal as an alternative in manufacturing magnets have shown promise in reducing costs. Powdered metal magnets can be produced at a lower cost while maintaining sufficient performance for many applications. This could potentially offset the high costs associated with traditional neodymium magnets, making PM Motors more accessible without compromising on efficiency and performance. Such advancements are instrumental in making these efficient motors more widely adopted across various industries.
Cost-Effectiveness of Induction Motors
Induction motors are generally more cost-effective compared to PM Motors primarily due to their use of readily available materials. The simplicity in their design and the widespread availability of manufacturing facilities contribute to their lower cost.
Use of Readily Available Silicon Steel Laminations
Induction motors commonly use silicon steel laminations in their stators, which are less expensive and more readily available than the rare earth materials used in PM Motors. This makes induction motors a more economical choice, especially for applications where budget constraints are a primary consideration. Silicon steel is not only cost-effective but also provides sufficient magnetic properties for efficient motor operation. This cost advantage, combined with their robust design and reliability, continues to make induction motors a go-to option for many industrial applications.
Materials and Manufacturing Techniques
PM Motor Components
Use of Powder Metal for Rotor and Stator
PM Motors utilize powder metal technology to manufacture both rotors and stators. This approach enables more accurate shaping and compaction, thereby improving the magnetic properties and overall efficiency of the motor. Powder metal parts allow for the creation of intricate geometries that enhance the distribution of magnetic flux within the motor. The use of this technique leads to decreased energy losses and boosts the performance features of PM Motors.
Benefits of Soft Magnetic Composites (SMCs)
Soft Magnetic Composites (SMCs) are another material innovation in the construction of PM Motors. SMCs are composed of ferromagnetic powders with insulating layers, enabling three-dimensional magnetic flux pathways. This property allows for more compact and lightweight motor designs, essential for applications with strict space and weight limitations. Using SMCs also reduces eddy current losses, further improving the efficiency and performance of the motor. The enhanced magnetic permeability and reduced core losses make SMCs a valuable material in manufacturing PM Motors.
Induction Motor Components
Traditional Use of Laminated Silicon Steel
Induction motors have traditionally employed laminated silicon steel in their construction. Silicon steel is well-known for its excellent magnetic properties and cost-effectiveness. Laminated cores help minimize eddy current losses by breaking the electrical pathways through the core, thus improving the motor’s efficiency. This traditional approach has been effective but lacks the advanced material benefits seen in PM Motors. Despite this, the affordability and reasonable efficiency of silicon steel keep it a staple in induction motor manufacturing.
Efficiency Gains from Powder Metal and 3D Shaping
Recent advancements have introduced powder metal and 3D shaping techniques to induction motors, although not as extensively used as in PM Motors. Utilizing powder metal allows for better customization of motor components, leading to improved magnetic properties and potentially higher efficiencies. The ability to shape components in three dimensions offers design flexibility and enhanced performance. These innovations are gradually closing the efficiency gap between induction motors and PM Motors, making the former more competitive in applications requiring higher efficiency.
Summary: Prospective Use Cases and Future Trends
Summary of PM Motor Advantages
Higher Efficiency
PM Motors provide much higher efficiency in comparison to induction motors. The design of PM Motors reduces energy losses, allowing them to achieve efficiency ratings as high as 97.5%. This makes them perfect for uses where energy savings and reducing operational costs are crucial. The exceptional efficiency of PM Motors meets the growing demand for sustainable and eco-friendly technologies.
Precise Speed Control
The inherent synchronous operation of PM Motors enables precise speed control, which is a critical requirement in many modern applications. The ability to maintain constant speed without slippage ensures better performance and reliability. Industries that require exact speed regulation, such as robotics and CNC machining, benefit tremendously from the precise control offered by PM Motors.
Lighter Weight
PM Motors also exhibit a higher torque density, allowing them to be lighter and more compact than equivalent induction motors. This weight advantage is particularly beneficial in applications like electric vehicles (EVs) and aerospace, where reduced weight translates to better overall system efficiency and performance. The lightweight nature of PM Motors contributes to easier handling and lower installation costs.
Applications Benefiting from PM Motors
Electric Vehicles (EVs)
The automotive industry is a significant beneficiary of PM Motors. Electric vehicles (EVs) require motors that provide high efficiency, lightweight, and precise speed control to maximize battery life and performance. PM Motors meet these requirements, making them the preferred choice in EVs, leading to longer driving ranges and enhanced vehicle performance.
Battery Tools
In the domain of battery-operated tools, PM Motors deliver the essential power and efficiency required without rapidly depleting the battery. Their lightweight and compact design renders them exceptionally suitable for handheld tools, where ease of movement and extended operation on a single charge are crucial. PM Motors guarantee that battery tools provide consistent performance while consuming minimal energy.
Variable Speed Drives
Industries employing variable speed drives also benefit from the superior performance of PM Motors. These motors provide accurate and reliable speed control, which is crucial for processes that require varying speeds to optimize productivity and energy usage. Applications in industrial automation and HVAC systems utilize PM Motors to achieve better control and higher efficiency.
Role of Powdered Metal in Enhancing PM Motor Performance and Cost Efficiency
The use of powdered metal in manufacturing PM Motors plays a crucial role in enhancing performance and cost efficiency. Powdered metal allows for the precise shaping of components, resulting in optimized magnetic properties and reduced energy losses. This manufacturing technique also enables the production of complex geometries that improve the motor’s overall efficiency. Additionally, powdered metal can be produced at a lower cost compared to traditional magnetic materials, making PM Motors more cost-effective and accessible.
Impact of Advances in PM Materials on Industry Electrification
Advancements in PM Motors materials have a profound impact on industry electrification. The development of high-performance magnetic materials, such as neodymium and improvements in SMCs, drives the adoption of more efficient and reliable motors. These advancements contribute to the broader electrification trend across industries, facilitating the transition to electric-driven systems. The enhanced performance and energy efficiency of PM Motors align with global sustainability goals, promoting reduced greenhouse gas emissions and lower energy consumption in various sectors. As material science continues to progress, the role of PM Motors in supporting industry electrification will only become more significant.
